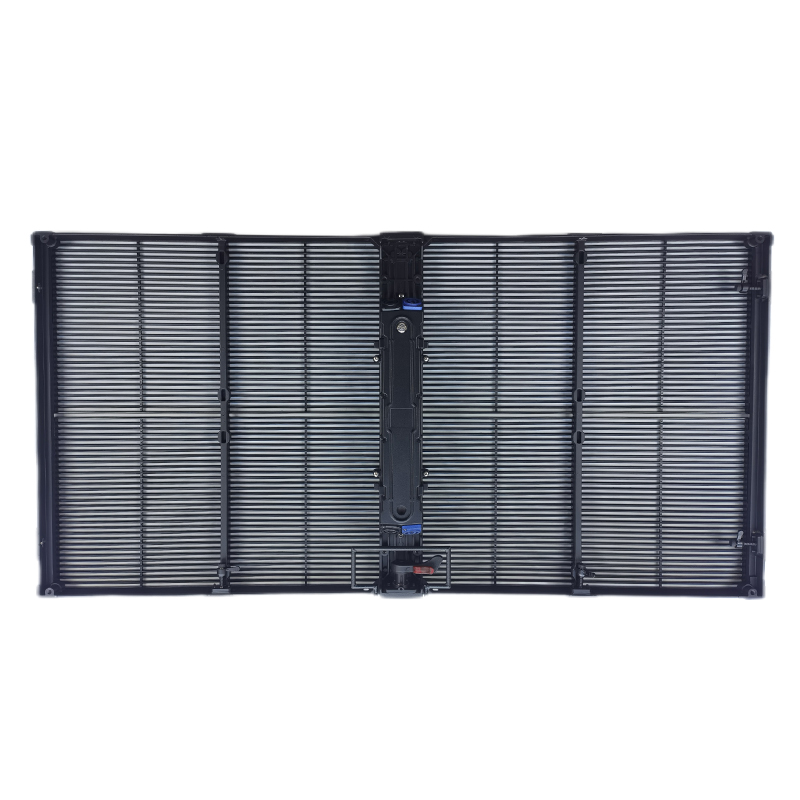

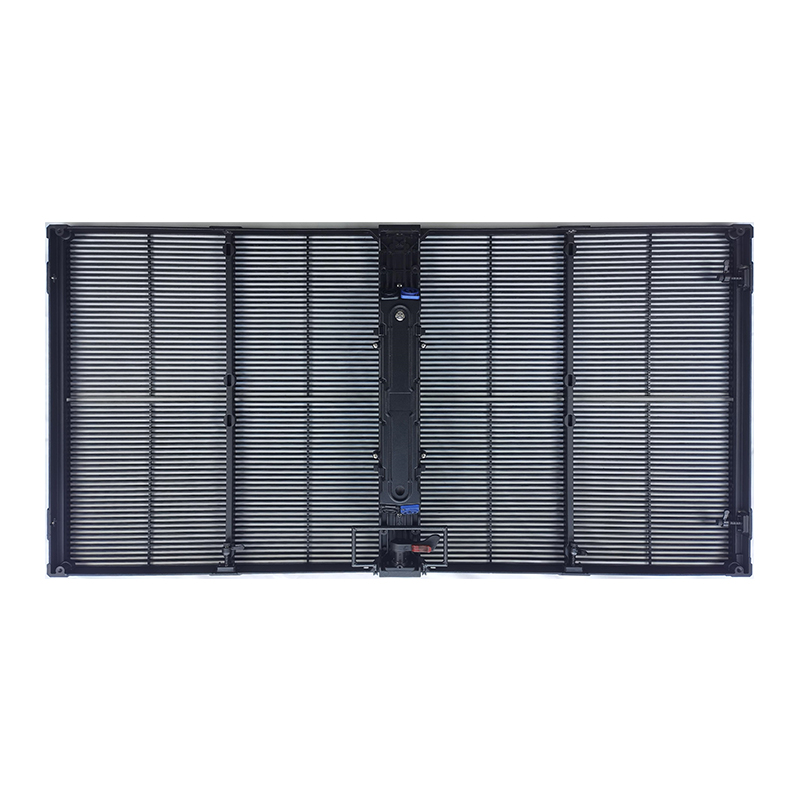

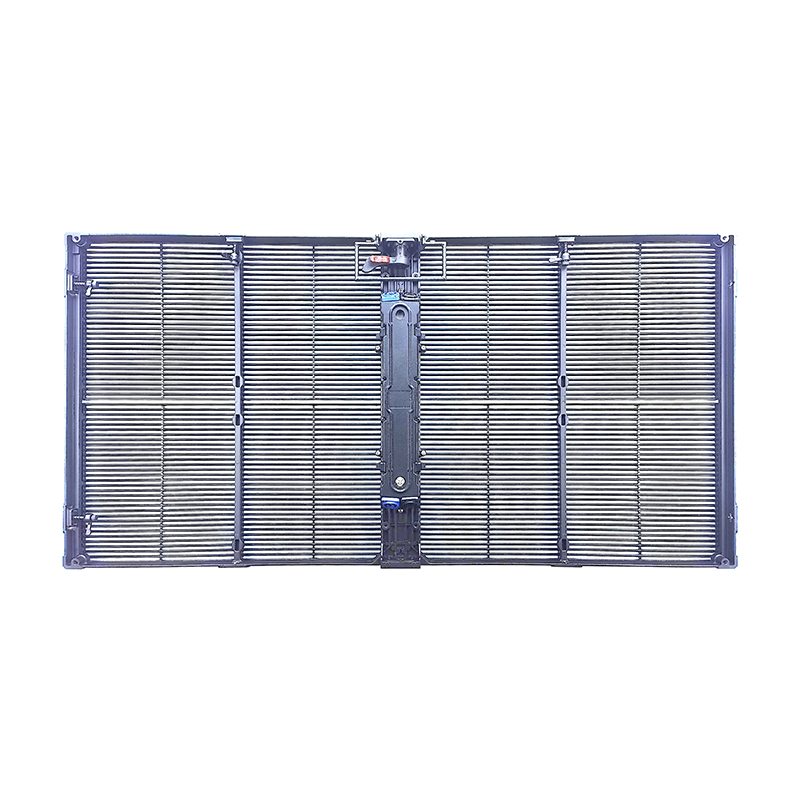

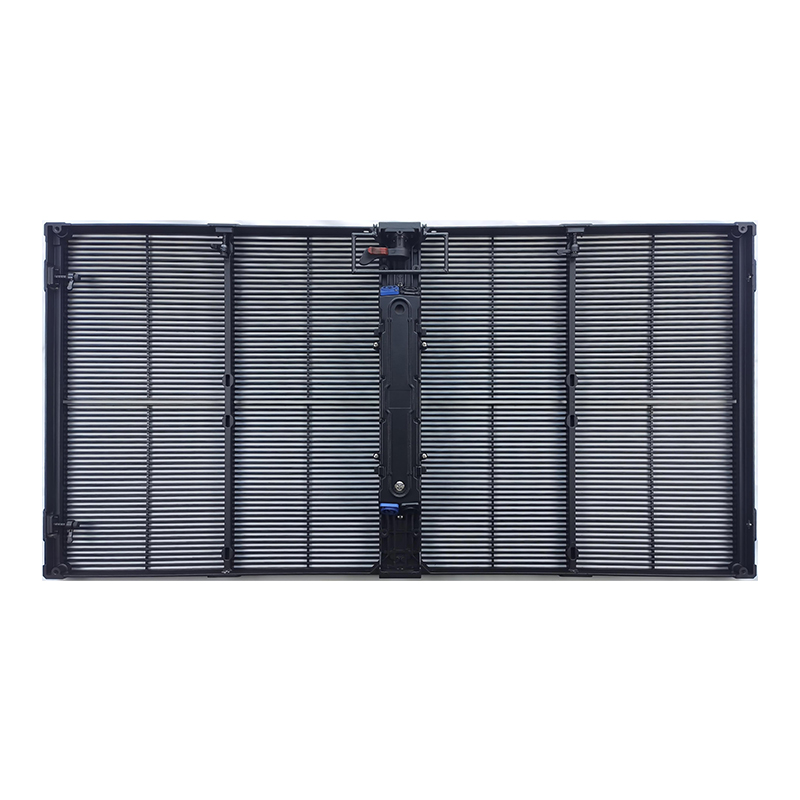

Phoenix series die-cast aluminum ice screen, is a new type of LED display, with transparent display, simple and quick disassembly, intelligent control characteristics. The novel and unique transparent display characteristics can be applied to the stage, concert, TV station, auto show, large-scale entertainment activities and cultural travel stage and other scenes.

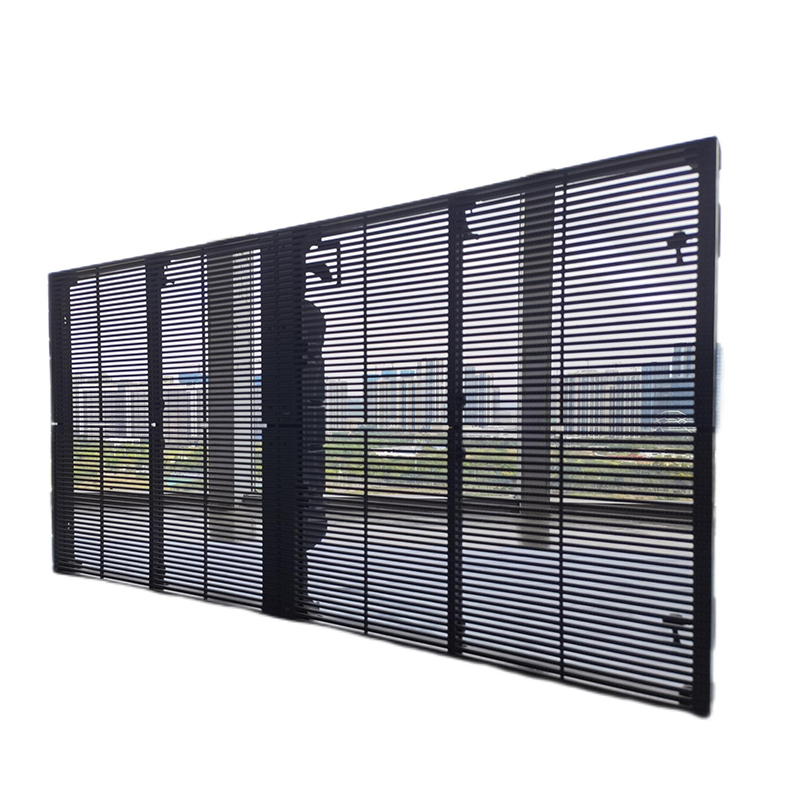

Transparent display | >50% transparency: Transparency rate>55%. helping stage designers present three-dimensionol and realistic sense of stage space
Quick installation I From light to thin: Light to 10Kg/m², thin to 75mm. Features gear-lock cabinet connections enabling 15-second module installation.
Easy Maintenance | Modular Integrated Design: Control system and power supply integrated for fast disassembly/maintenance
Wide Viewing Angle | 160° Optimal Visibility: 160° viewing angle ensures broader coverage and superior display effects''
| Pheonix Series Parameters | ||
| ||
| Model | indoorPX3.9/7.8 | outdoorsPX3.9/7.8 |
Pixel pitch | 3.9/7.8mm | 3.9/7.8mm |
Weight | 5.3kg/panel | 6.4kg/panel |
Pixel Density | 32768Pixel/m² | 32768Pixel/m² |
Resolution | 256*64(W*H) | 256*64(W*H) |
Maximum Brightness | 600(cd/m²) | 4000(cd/m²) |
Gray scale | 15bit | 16bit |
Refresh rate | 7680(Hz) | 7680(Hz) |
Contrast ratio | 3000:1 | 3000:1 |
Scanning method | 1/16 | 1/8 |
Color temperature | 3600-12000K | 3600-10000K |
Viewing angle | H160/V140° | H160°%V140° |

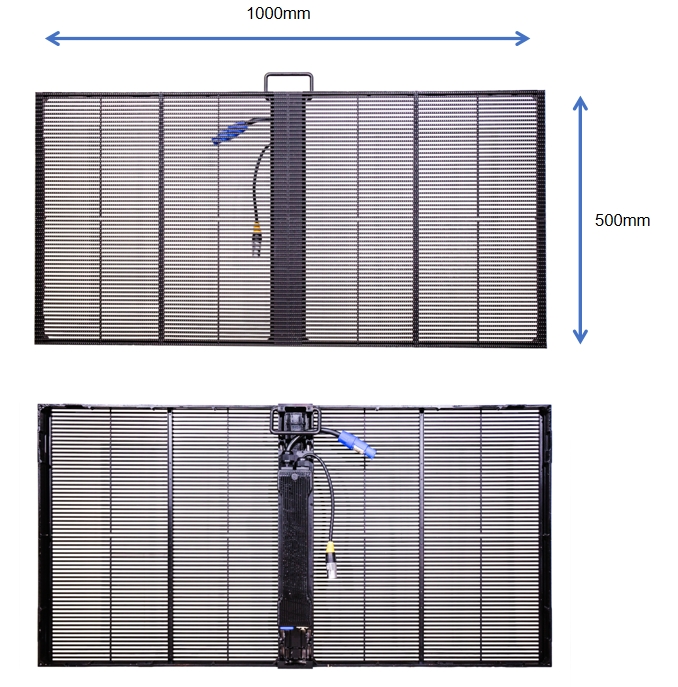

Screen size | 1000*500*75mm(W*H*D) | 1000*500*75mm(W*H*D) |
Module Size | 500*250mm(W*H) | 500*250mm(W*H) |
Operation temperature | -20°%45° | -20/45° |
Average Power | 120W/m² | 200W/m² |
Maximum power consumption | 400W/m² | 650W/m² |
Power Supply Specifications | AC100-240V | AC100-240V |
Protection grade | IP4X | IP65 |

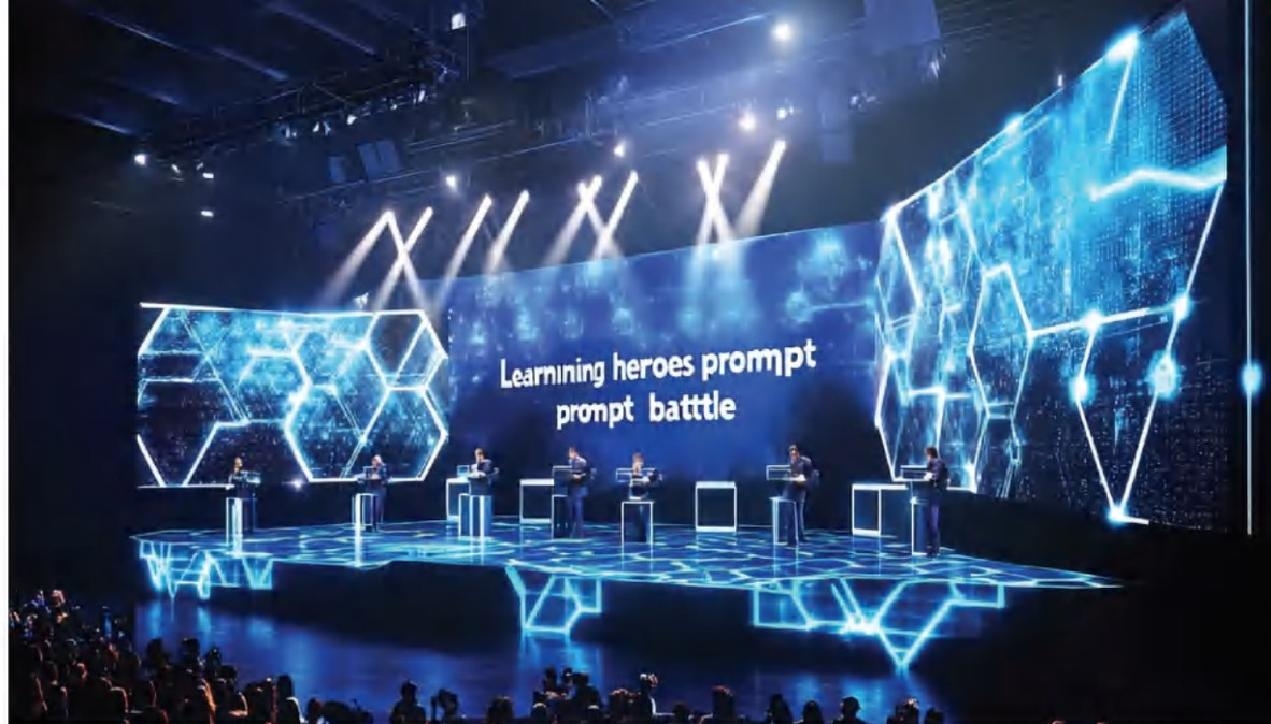

Concert Events & Live Performances
TV Galas & Entertainment Shows
Auto Exhibitions & Premium Trade Shows
Flagship Product Launches
Get Your Custom LED Display Solution with ITFLED
