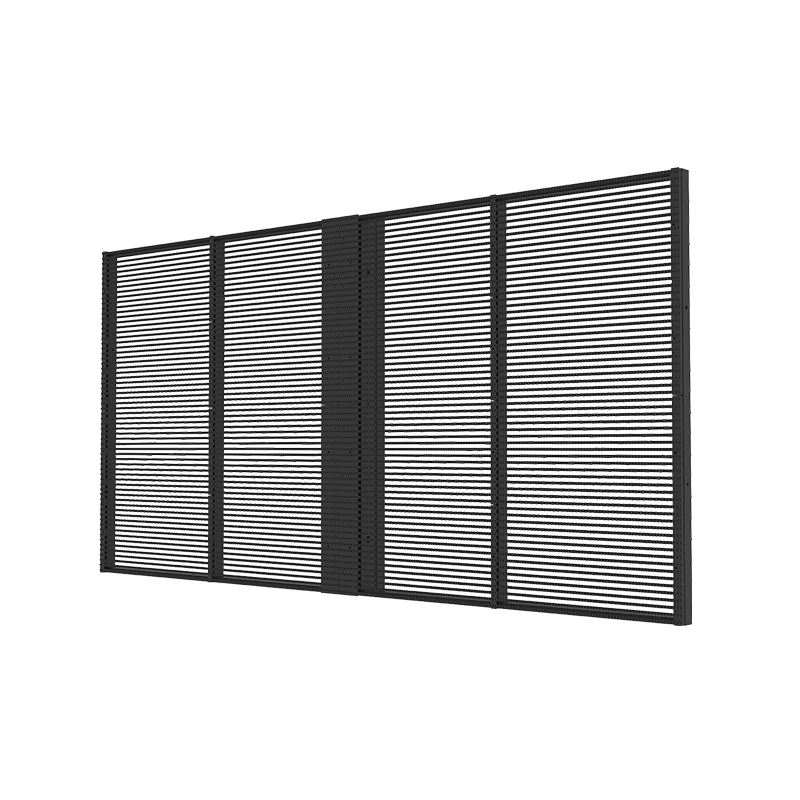

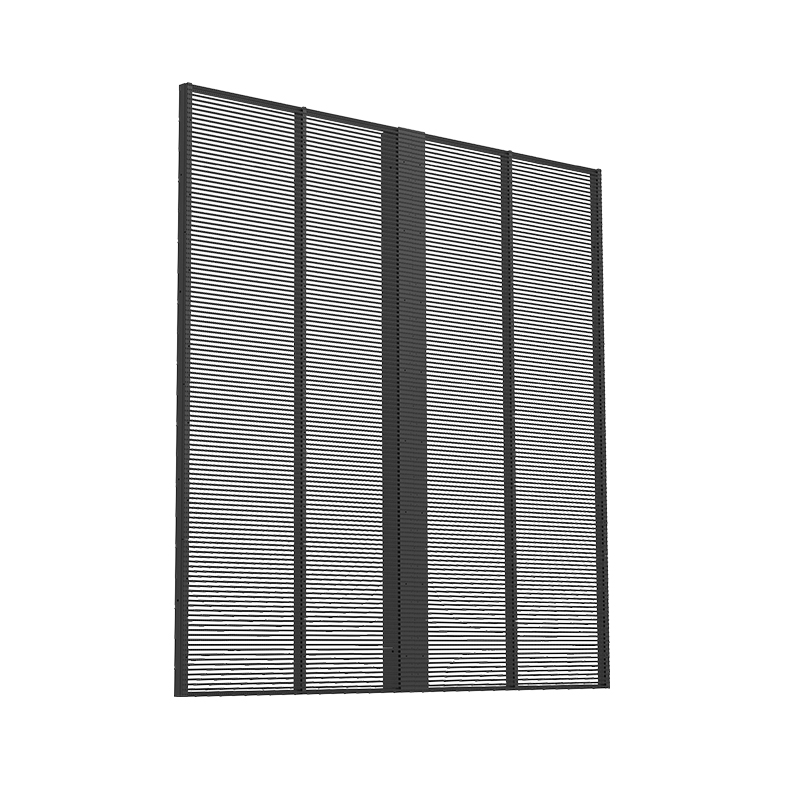

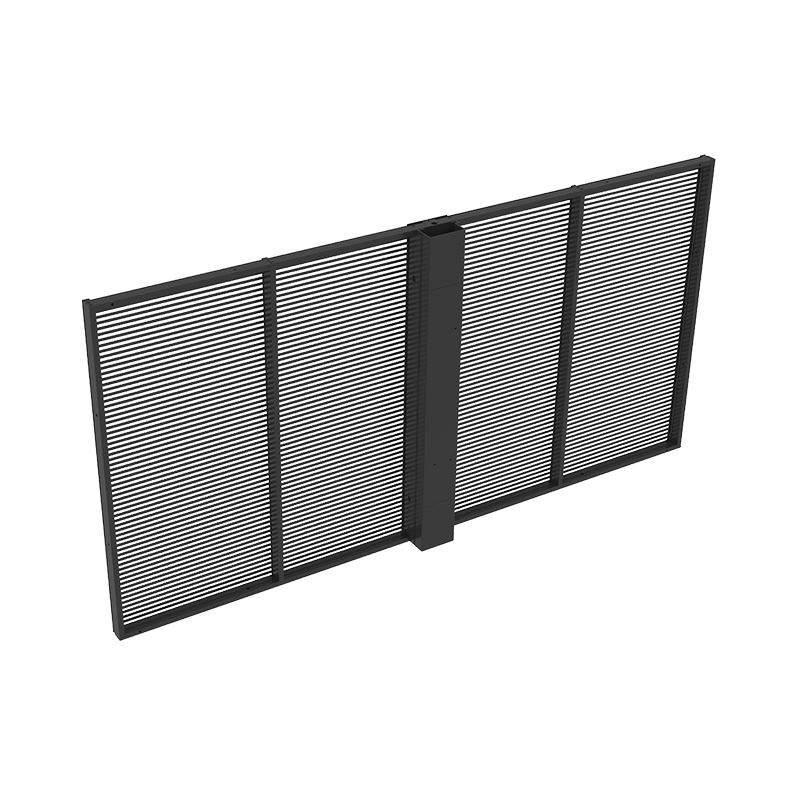

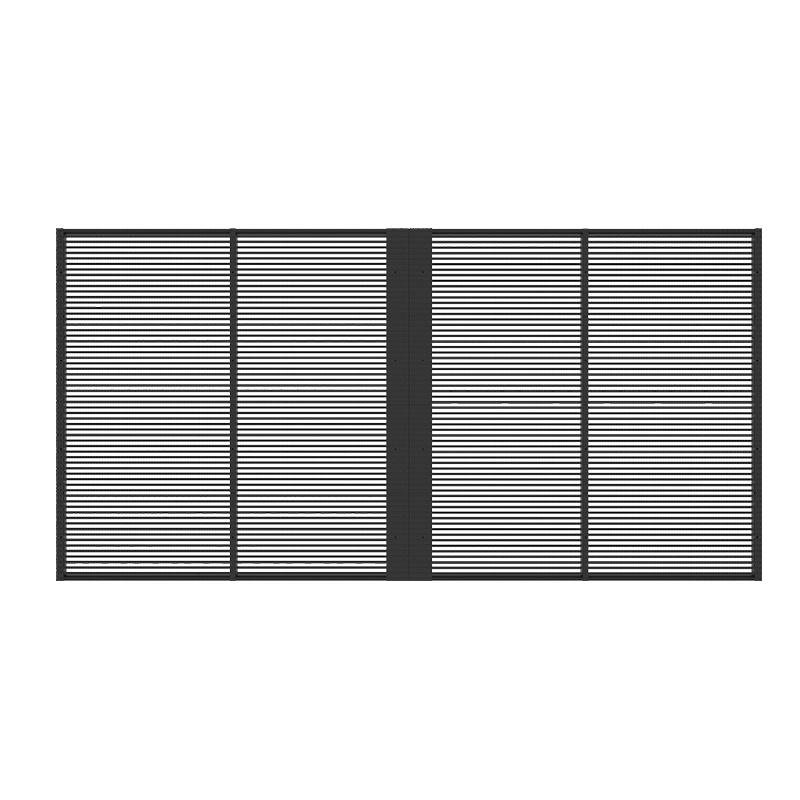

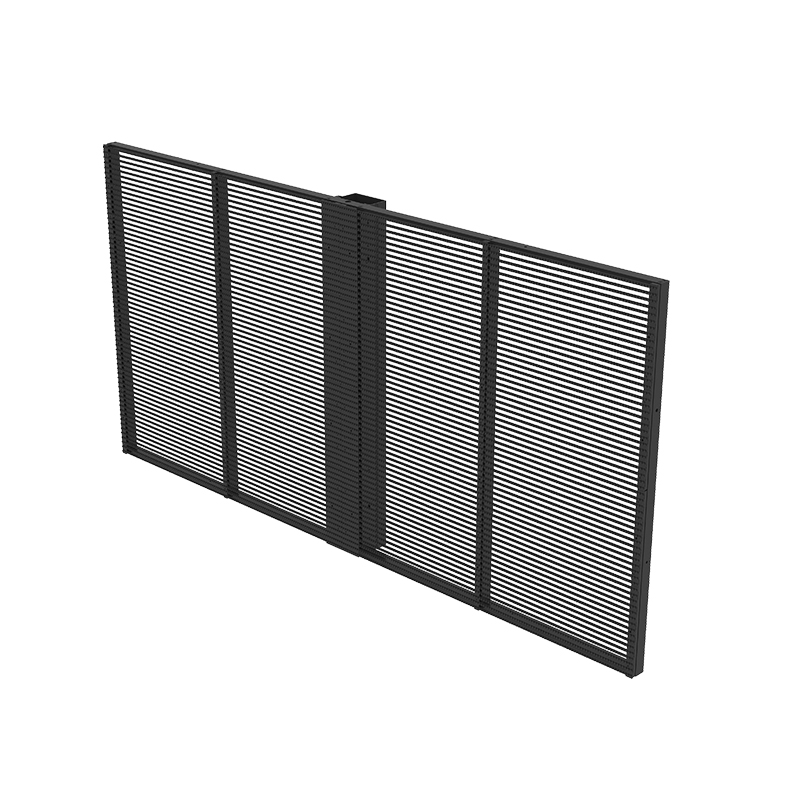

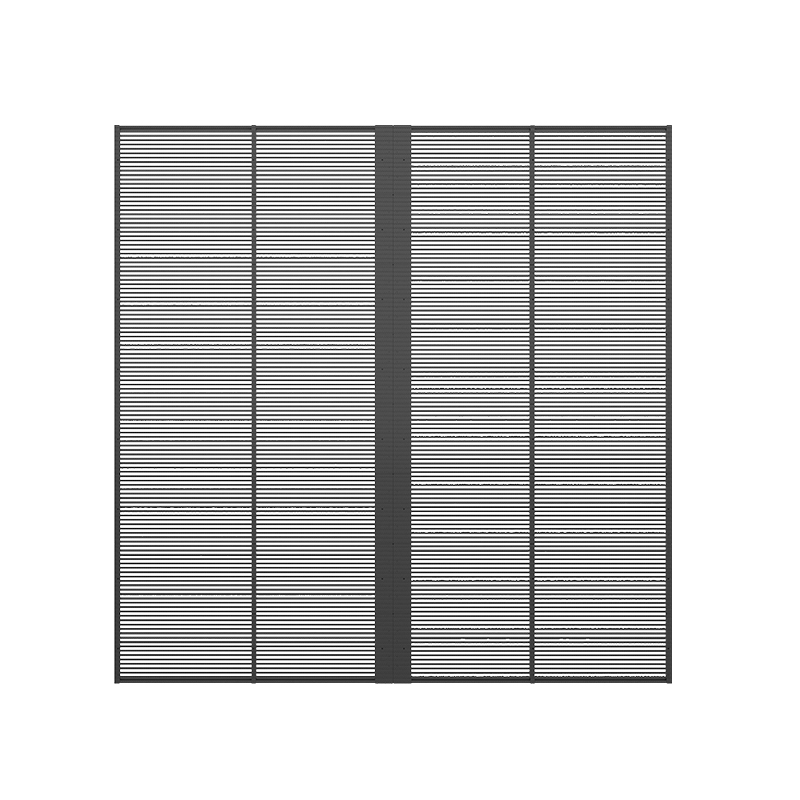

The Crystal LED Screen by YIPLED is a premium high brightness LED display that features >50% light transmission and front-emitting LED design. This see-through screen preserves ambient light flow while delivering vivid visuals, making it ideal for high-end retail and architectural applications. As part of our Crystal Series, it combines cutting-edge engineering with artistic versatility.
No Light Obstruction | >50% Transparency
This front-emitting transparent LED display delivers over 50% light transmission, providing high transparency and clarity as a true see-through LED screen.
Smart Control | App + Wireless Sync
The crystal see-through LED panel supports multi-device wireless synchronization via an intuitive app, enabling users to wirelessly share videos and images from smartphones for instant social media interaction.
Wide Viewing Angle | 160°
Built with copper wire and copper bracket, this wide viewing angle high resolution LED screen ensures high reliability and exceptional contrast ratio, ideal for high contrast transparent LED applications.
Modular Design | DIY Customization
The steel-free structure allows flexible sizing and a lightweight LED display at just 10kg/m². This modular LED see-through screen features rapid assembly with 16,384 pixels/m² density for crisp imagery.
Low-Brightness High-Gamut | 200-5000cd/m²
Exceptional color accuracy with high grayscale and saturation, even in low-light environments – a high gamut crystal LED screen that maintains vibrant visuals across brightness levels from 200 to 5000cd/m².
| Model | CS3.9X7.8Pro-T | CS3.9X7.8H-L | CS3.9X7.8H-M | CS3.9X7.8H-T |
Pixel pitch | 3.96/7.81mm | 3.96/7.81mm | 3.96/7.81mm | 3.96/7.81mm |
Weight | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel | 7.5kg/panel |
Pixel Density | 32256Pixel/m² | 32768Pixel/m² | 32768Pixel/m² | 32768Pixel/m² |
Module pixel | 2016Pixel | 2048Pixel | 2048Pixel | 2048Pixel |
Maximum Brightness | 5000(cd/m²) | 500(cd/m²) | 1800(cd/m²) | 4500(cd/m) |
Gray scale | 14bit | 13bit | 13bit | 13bit |
Refresh rate | 3840(Hz) | 1920(Hz) | 1920(Hz) | 2880(Hz) |
LED Type | SMD1921 | SMD2020 | SMD1921 | SMD1921 |
Scanning method | 7 | 16 | 16 | 8 |
Heat | 75W | 60W | 60W | 80W |
Viewing angle | 140° | 140° | 140° | 140° |
Refresh frequency | 3840 | 1920 | 1920 | 2880 |
Frame Frequency | 60 | 60 | 60 | 60 |
Operation temperature | -20°%45° | -20°/45° | -20/45° | -20°/45° |
Average Power | 220W/m² | 200W/m² | 200W/m² | 240W/m² |
Maximum power consumption | 720W/m² | 400W/m² | 400W/m² | 800W/m² |
Power Supply Specifications | F&R maintenance | F&R maintenance | F&R maintenance | F&R maintenance |
Protection grade | IP20 | IP20 | IP20 | IP20 |
Scalable | Croppable | not | not | not |

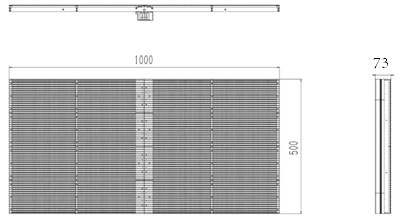

1000*500

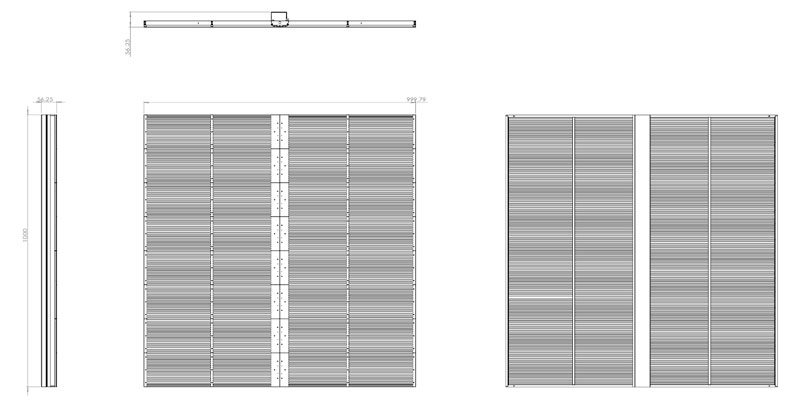

1000*1000
Customize your own size for LED crystal display – contact our engineer

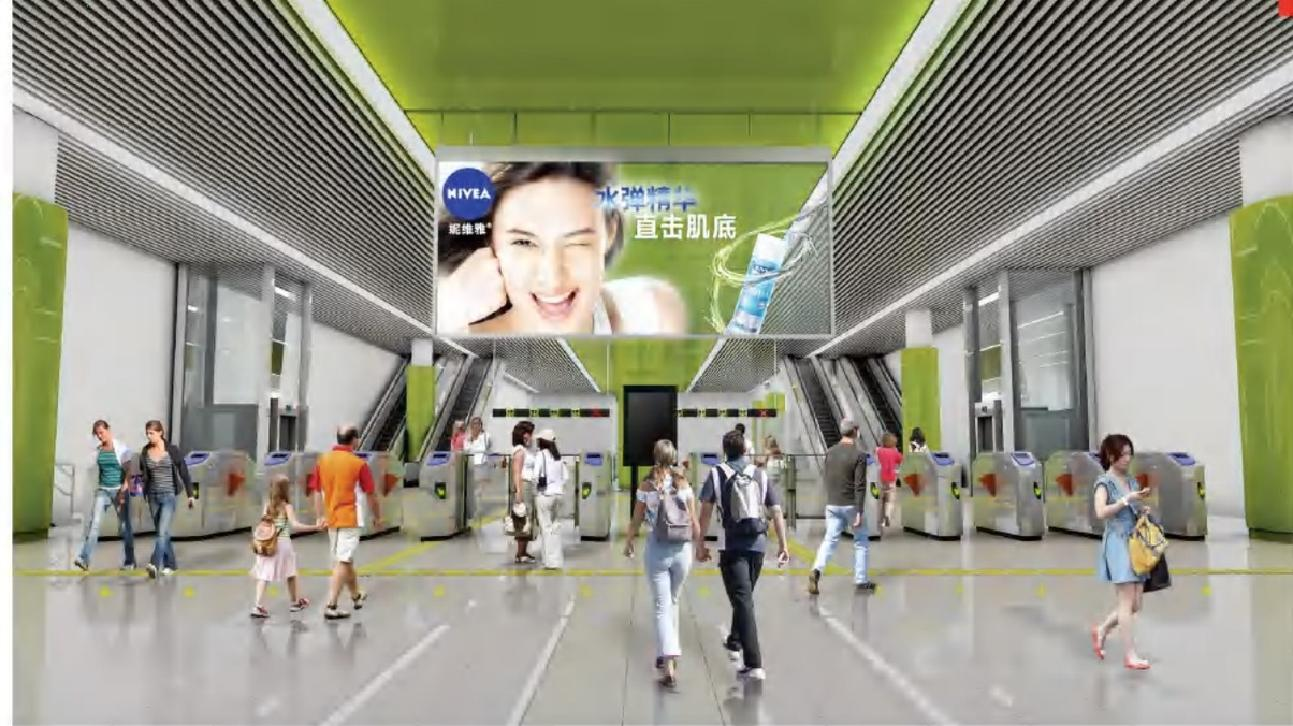

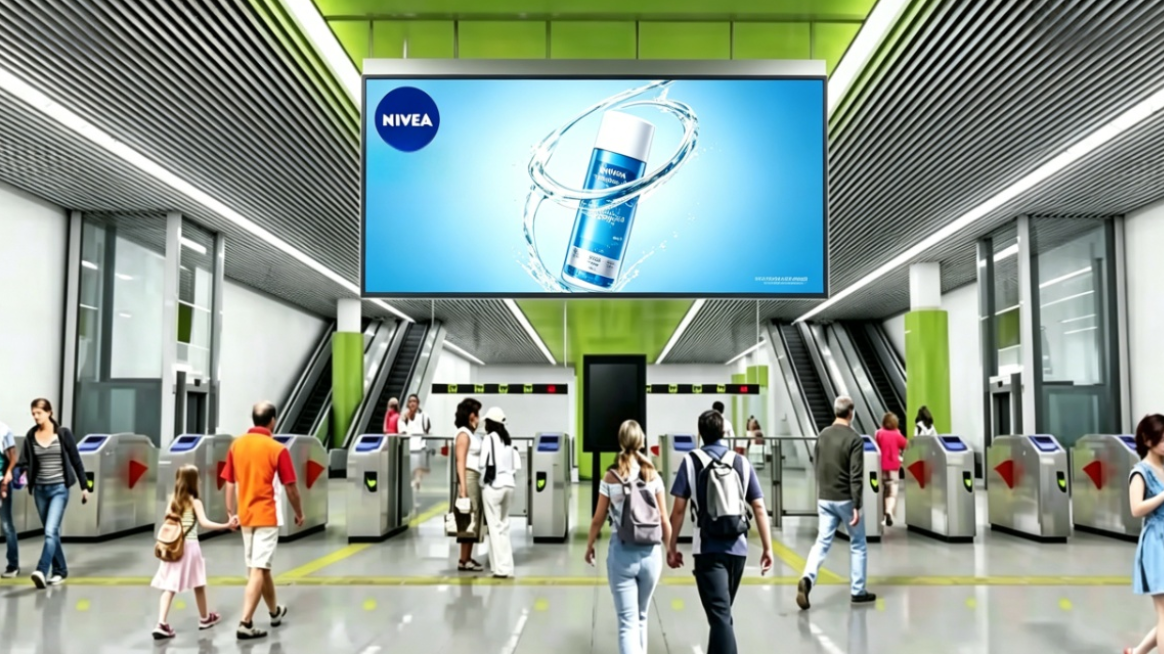

Bars, Airports, High-Speed Rail Stations & Large Indoor Spaces
Our high resolution LED display delivers vivid visuals even in bright ambient light, making it ideal for high-traffic public venues.
Display Windows
The high resolution LED screen preserves the view of products behind it while overlaying promotional videos and pricing. With its see-through design and high definition LED display quality, passersby are drawn to the window without losing sight of the actual merchandise.
Atriums
Suspended or wall-mounted in hotel atriums and shopping mall central courts, this high resolution LED wall transforms empty vertical space into a dynamic art piece, ensuring that shoppers below enjoy natural light and open sightlines, while being captivated by floating, crystal-clear content.
