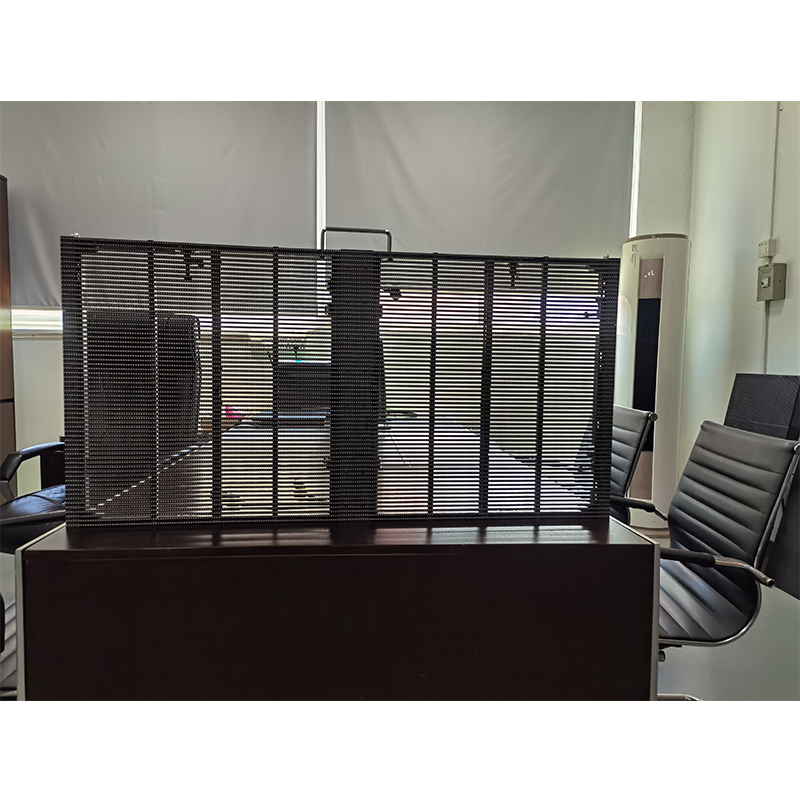

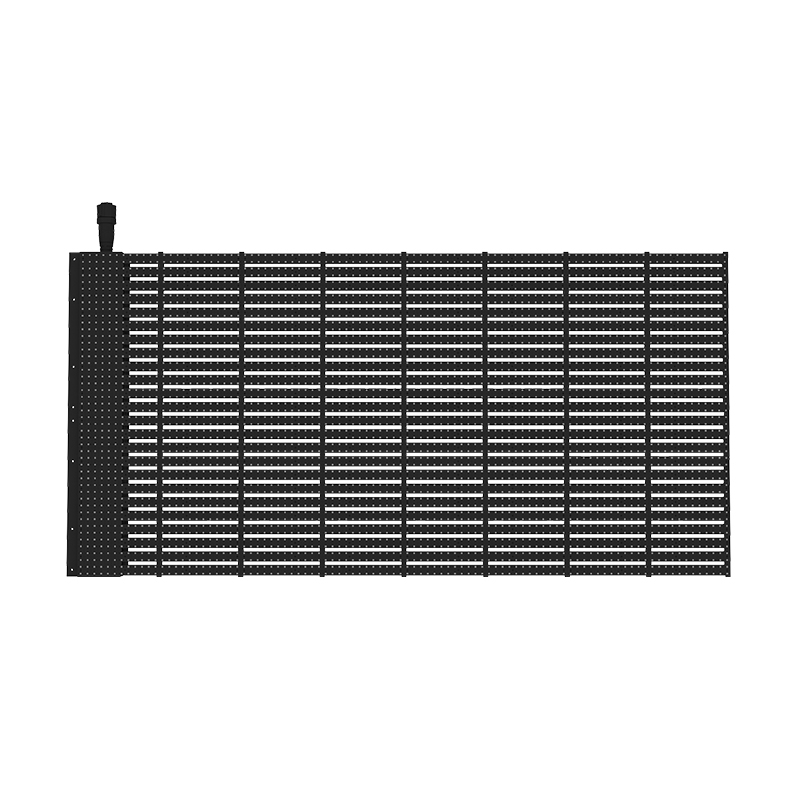

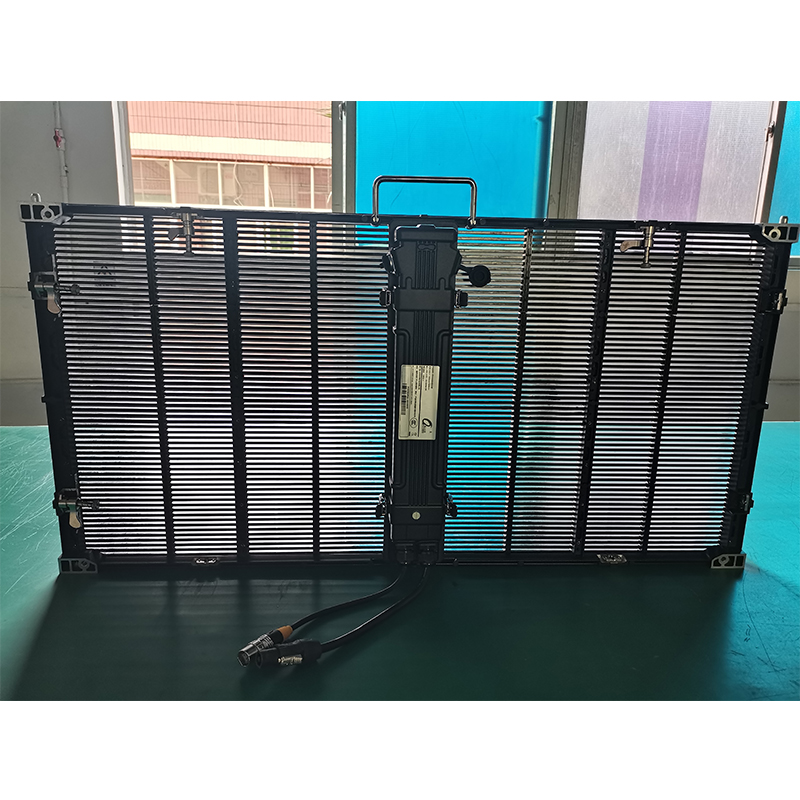

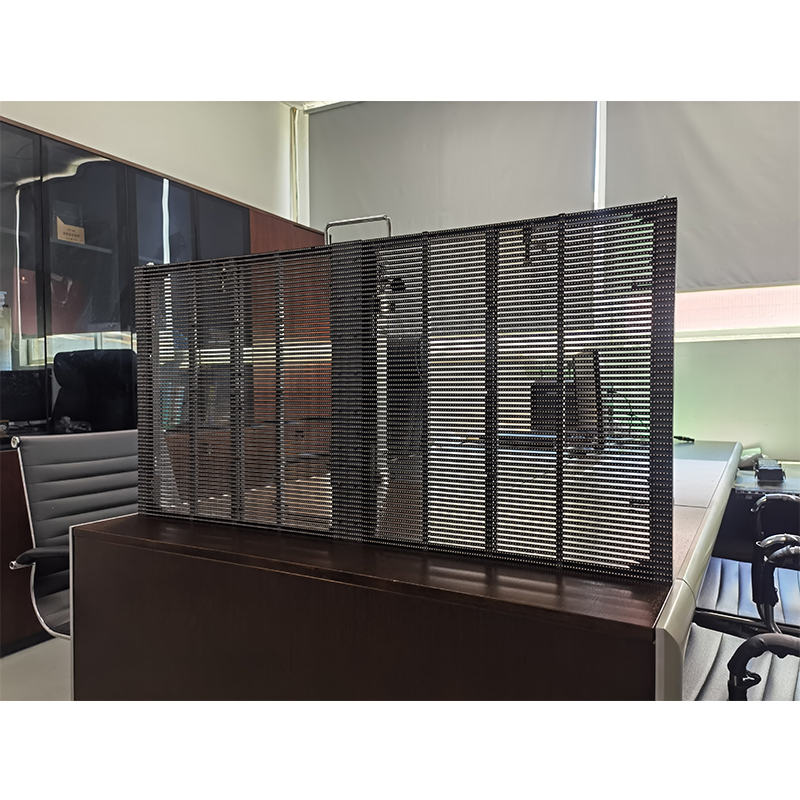

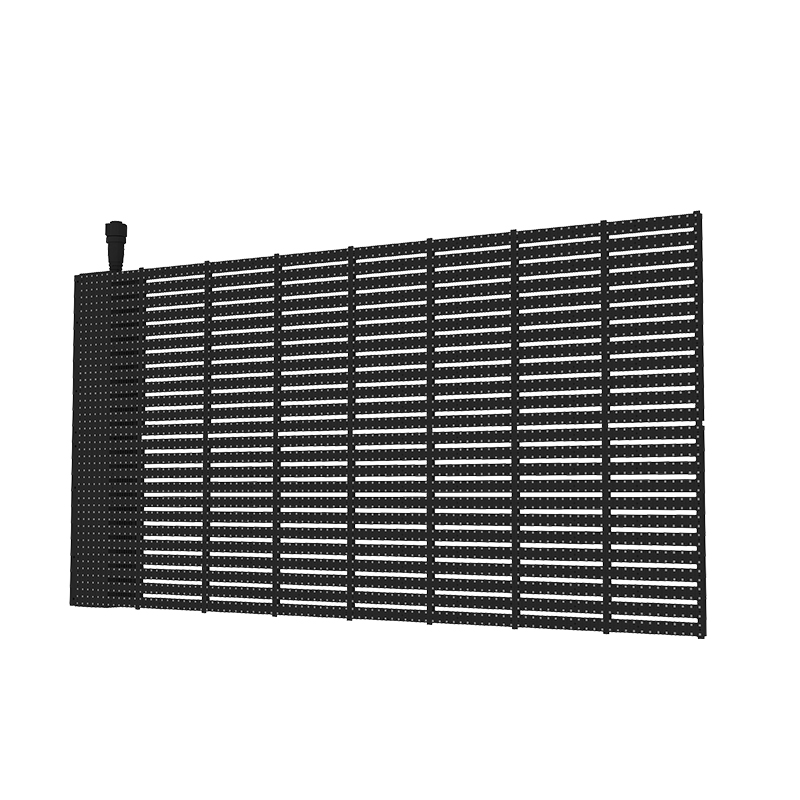

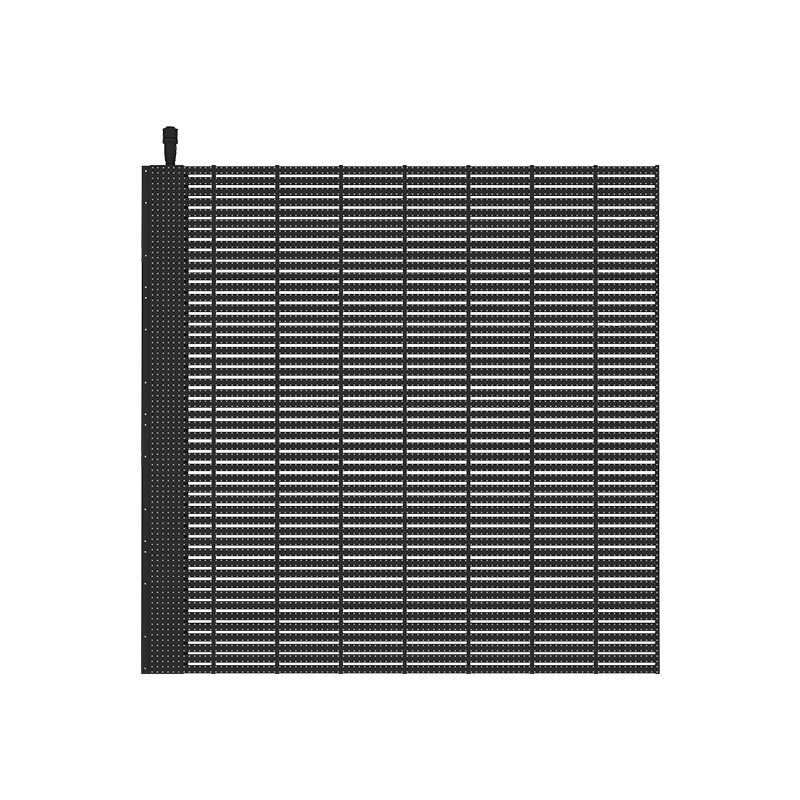

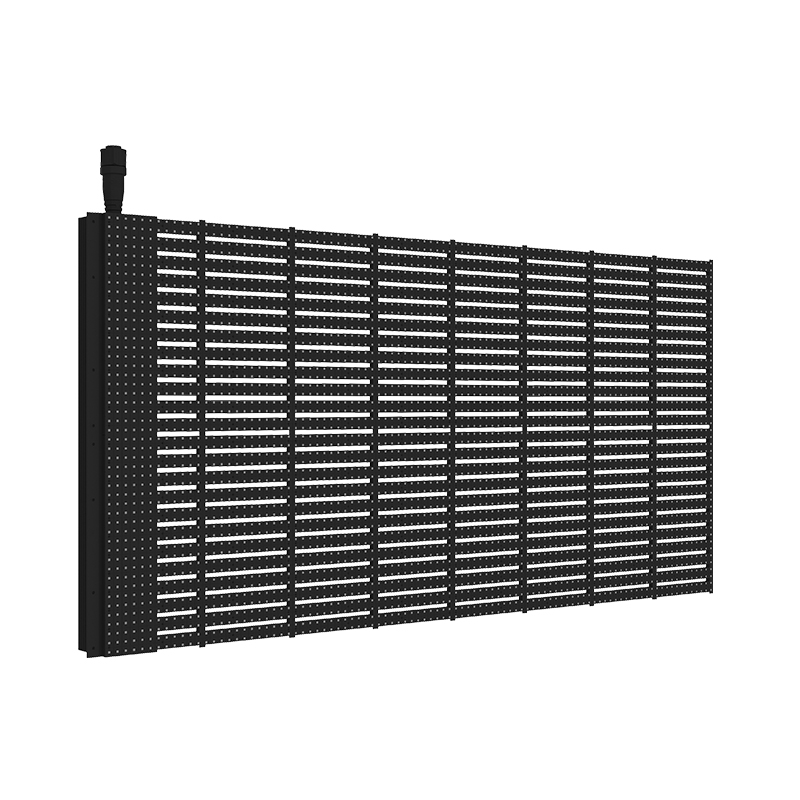

LED outdoor grille screen is a new type of LED display product, with outdoor waterproof IP67 grade, full color display, more convenient and building curtain wall. This led curtain display solution is designed for large-scale outdoor applications where transparency, durability, and visual impact are required. The box can reach 1000*1000mm, providing 500*1000mm size box, modular design, ultra-thin, front and back maintenance, easy installation and maintenance.
High Brightness & High Refresh Rate | 7000nits/7200Hz
Crystal-clear visibility day & night: 7000nits brightness ensures vivid display even under direct sunlight, while 7200Hz refresh rate eliminates water ripple effects for flawless photography
Long-distance attraction: Captures attention from afar during nighttime with high-intensity luminosity
Ventilated & Light-Transmissive | >25% Transparency
Superior airflow design: Over 25% open area of the transparent LED display enhances wind resistance and structural stability. The led curtain display design allows buildings to maintain natural lighting while delivering dynamic advertising and media content.
Natural light preservation: Maintains building aesthetics without blocking sunlight penetration
Ultra-Thin & Lightweight | IP67 Protection
Slim profile:<10mm module thickness with <13kg/m² weight – ideal for high-rise installations
Military-grade durability: IP67 rating withstands harsh weather conditions while ensuring easy maintenance
Simplified Installation | Modular Design
Tool-free assembly: Snap modules onto pre-mounted power beams and secure with screws
Clean cable management: No exposed power/network wires for seamless integration
| Product specification | outdoor CT10.4 | outdoor CT10.4 PRO |
pixel pitch（mm） | 10.4*10.4 | 10.4*10.4 |
pixel density（dots/m2） | 9216 | 9216 |
resolution ratio（W*H/pcs） | 24*96 | 24*96 |
maximum brightness（cd/m2） | 5500 | 7000 |
Color Mode（bit） | 15 | 15 |
refresh rate(Hz） | 7200 | 7200 |
scanning mode | 1/2 | static state |
Viewing Angl（º） | H140/V120 | H160/V160 |
Screen size (W*H*D)(mm) | 1000*1000*77 | 1000*125*3 |
Module size（W*H）(mm) | 250*1000*13 | 1000*125 |
Weight（kg/panel） | 13 | 5 |
IP Grade | IP67 | IP65 |
Power supply | 500W PFC power，91%efficiency | 400W PFC power，91%efficiency |
working voltage(V) | AC100-240V/50/60HZ | AC100-240V/50/60HZ |
maximum power consumption（W/m2） | 650 | 650 |
Average Power consumption(W/m2) | 200 | 200 |
Working Temperature（℃） | -20/50 | -20/50 |
Screen body main material | aluminum profile+PC | aluminum profile+PC |

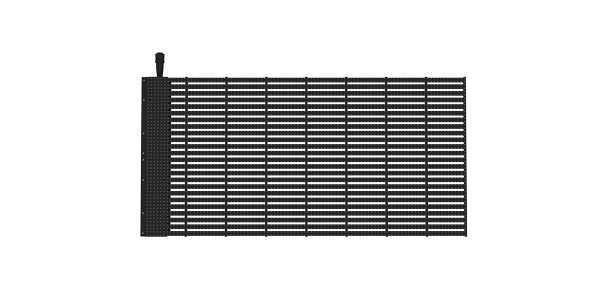

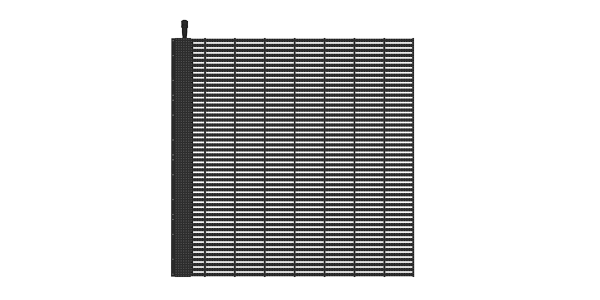

| 1000*500 | 500*500 |
 |  |
High-Rise Buildings & Shopping Malls
Airports
Hotels

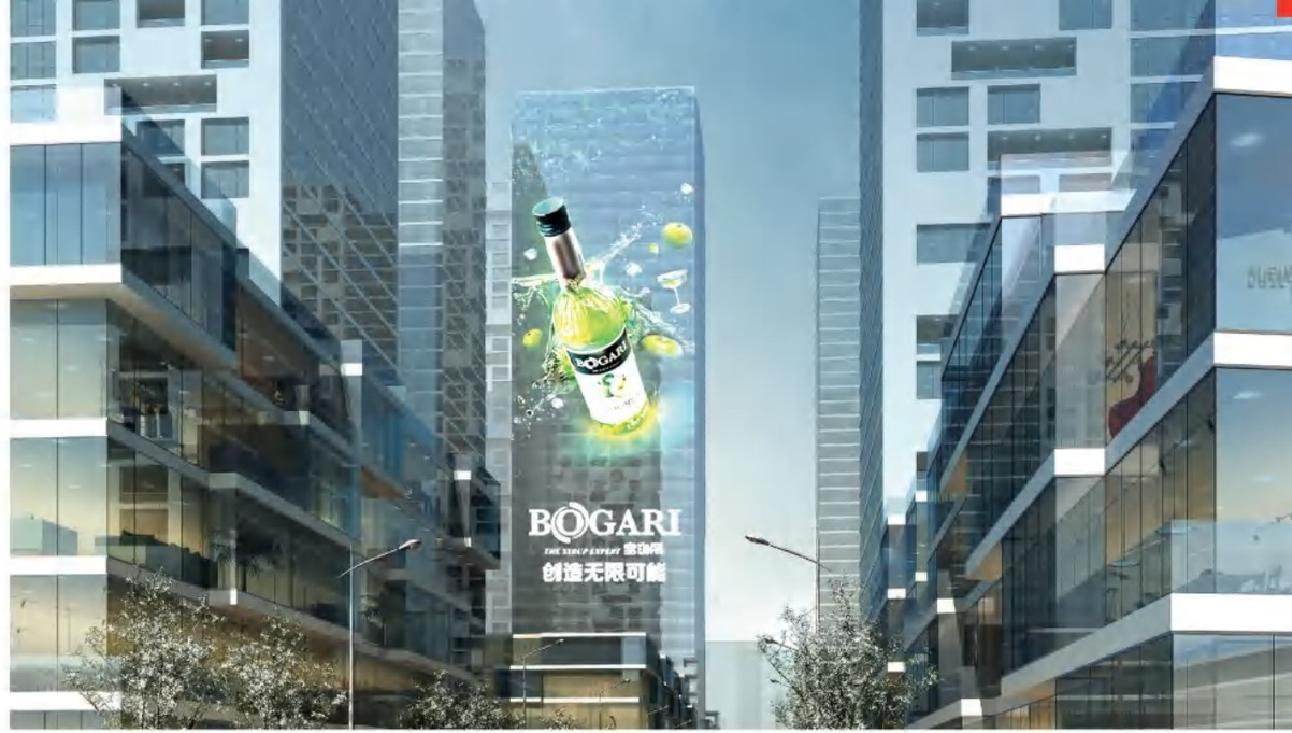

Outdoor Naked-eye 3D Billboards
The led curtain display is suitable for commercial buildings and outdoor media projects that require high brightness, weather resistance, and seamless integration with architectural structures.
