Jade Series Transparent Glass Window LED Display, see through led screen, without any change of architectural appearance and transparency of the glass wall, creating the open view in large space indoors, window displays for sale and make advertising emerge into architecture and life. Glass window display Jade series transparent led screen's outstanding features: smart control by mobile APP, wireless data transmission, screen+data cloud+APP, Wifi connection. High refresh rate in the industry, minimum pixel pitch(able to mass production) 3mm, 3840HZ refresh rate. High contrast ratio 1500:1, stunning color, dynamic image and eye-catching. Super transparent, more than 85% transparency, the highest transparency in led screen industry. Simple to use, no complicated installation, no steel structure, fast positioning and installation, convenient and quick maintenance. New configuration, the shape innovation of static glass, new screen displaying, new advertising type.

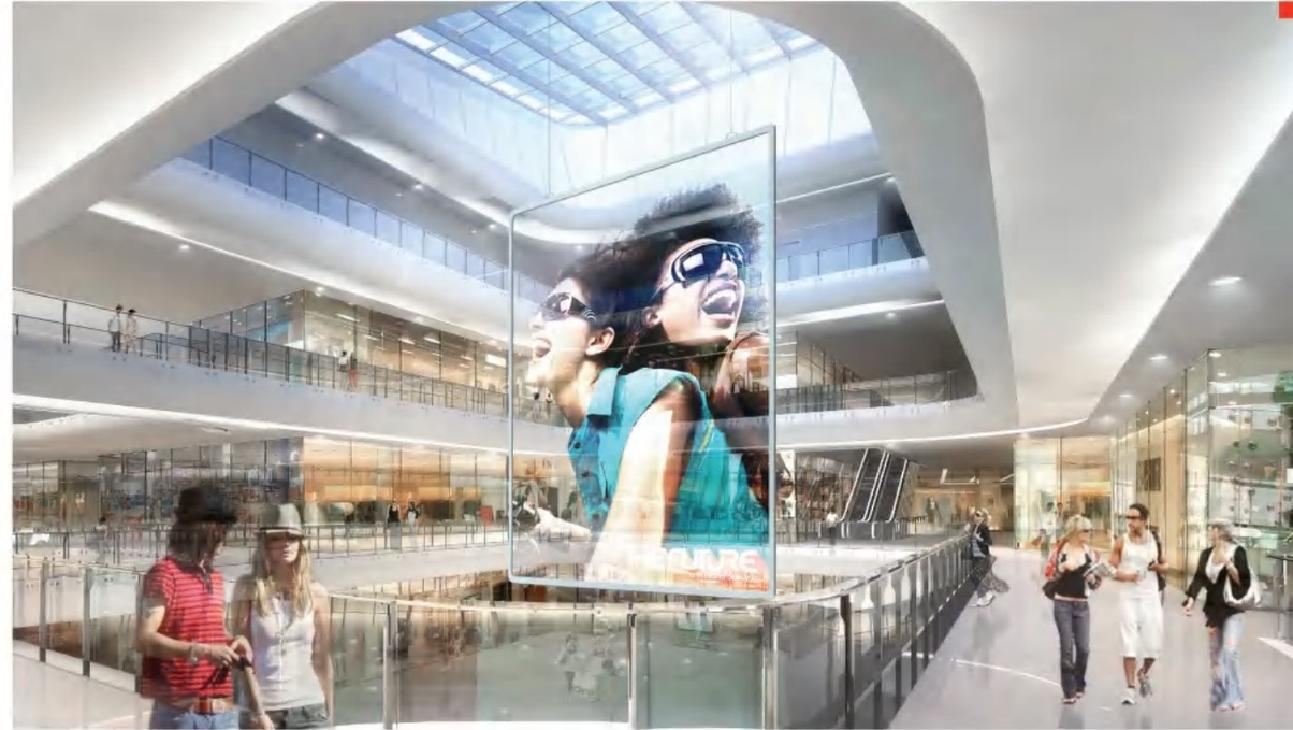

Glass wall, glass window, large indoor space
Jade Screen Series
Viewing Angle: 120°
Modular: DIY design, free combination of arbitrary size glass screen. Simple: no complex installation, no steel structure, quick positioning, quick installation, convenient and quick maintenance. Brilliant colors: high contrast 1500: 1, dynamic image, attracting eyeball. New form: change the form of static glass, new screen display, new advertising methods.

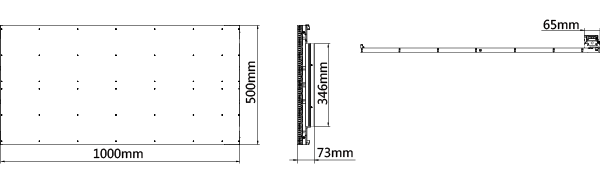

1000 × 500 × 85 / 8.5 kg

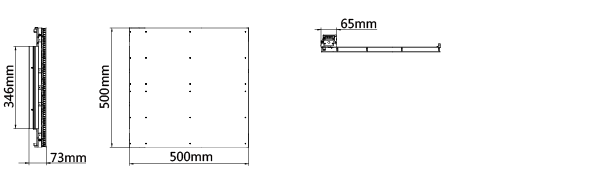

500 × 500 × 85 / 4.25 kg
Modular, minimalist, colorful; New form: new screen display, new advertising mode. Pixel Pitch(mm): 3.9X7.8, 7.8X7.8, 10.4X10.4; Module Size (mm): 1000(W) X 500(H), 500(W) X 500(H);
|Pixel Pitch (mm)||3.9 x 7.8||10.4 x 10.4|
|Pixel Density (dot/㎡)||32768||9216|
|Module Resolution (dot)||256 X 64||256 X 64||96 X 48||48X 48|
|LED Type||SMD 3 in 1||SMD 3 in 1|
|Refresh Rate (Hz)||3840||3840|
|Frame Frequency (Hz)||60||60|
|Avg.Power Consumption (W/㎡)||240||300|
|Max.Power Consumption (W/㎡)||800||800|
